Configuring the host device

You must configure the host for your ESCON or Bus & Tag device. The following host definitions match the default BARR/PRINT CHANNEL for IPDS connection configuration settings. If you change your configuration settings on the Connection Configuration dialog box, you must also change the host definition. The CNTLUNIT parameter on the host definition varies depending on your device.

Configuring the host is only necessary if you are adding a printer definition for the first time. If you are replacing an existing channel-attached printer, you do not need to change your host definition.

• ESCON

• Bus & Tag

See also:

• Configuring the host

• Getting started

Configuring the host for ESCON

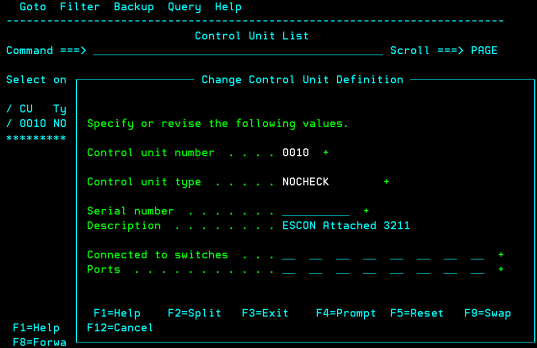

Use the following host definitions for an ESCON device. For ESCON connections, set your host control unit type to NOCHECK.

Configuring the host for Bus & Tag

Use the following host definitions for a Bus & Tag device.

Some hosts do not support PROTOCL=S4 (data streaming The uninterrupted transfer of information over an interface to achieve high data transfer rates (for channel data streaming, 3 or 4.5 MBps). Data streaming is not adversely affected by signal delays introduced by long cable lengths. 4.5 MB). If your host does not support this data streaming rate, use PROTOCL=S (data streaming 3.0 MB). This parameter must match the Channel transfer mode specified on the Adapter Properties dialog box.
